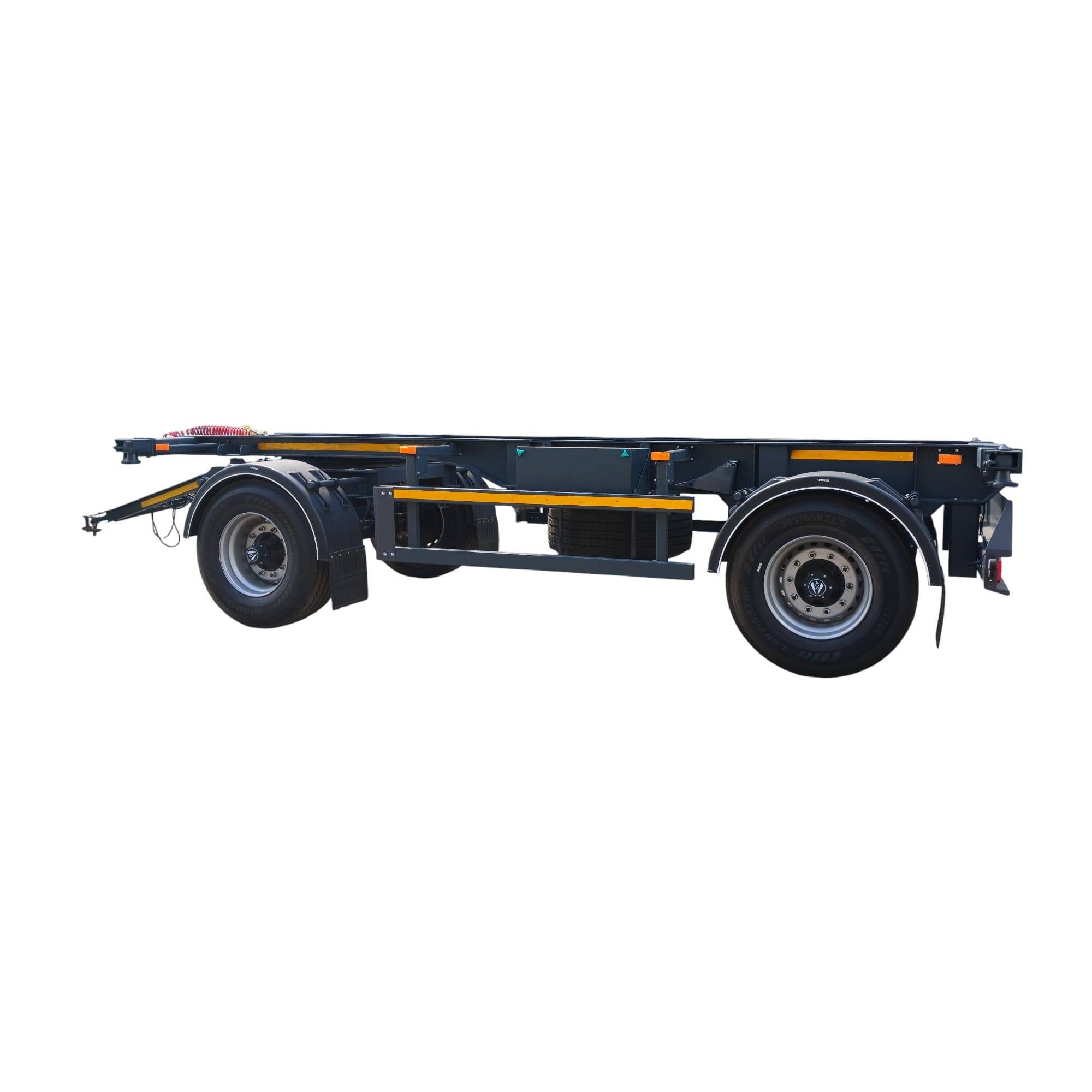

The PTK-10 container transport trailer, or container carrier, is an important element in the container transportation system. Its main function is to transport large 20-foot containers using a truck. This type of trailer is indispensable for companies involved in logistics and container transportation both over short and long distances.
Advantages of a container trailer
- Versatility. The container trailer easily connects to standard trucks, making it convenient for transporting containers of various types on public roads.
- Easy loading and unloading. Thanks to standard fasteners, the container can be quickly and stably fixed to the trailer platform, ensuring safe cargo transportation.
- Reliability in difficult conditions. Container trucks are made of durable materials that can withstand significant loads and ensure the safety of the container during transportation on roads of any complexity.
Application of container trailers
Container trailers are widely used to deliver cargo from ports, warehouses or railway stations to their final destination. This allows logistics companies to transport containers without the need for reloading.
The PTK-10 container truck is equipped with a sturdy platform with a container locking system that prevents it from shifting during transportation. The trailer is also equipped with additional shock absorption systems that reduce vibration and ensure smooth movement on the roads. This makes it ideal for use in difficult road conditions. Due to its versatility and durability, the container truck is an important tool for logistics operations, ensuring safe and timely delivery of containers to any distance.
| Specifications | Value |
| Overall dimensions, mm: – length, no more – width – height (in assembled condition) |
7765 2455 1340 |
| Body | Container ship (for 20-foot container) |
| Maximum trailer drawbar length, mm | 1990 |
| Curb weight, no more than, kg | 3200 |
| Gross weight, no more than, kg | 18,000 |
| Wheel size | 385/65 R22.5 |
| Maximum speed, km/h | 80 |
| Brake system | Pneumatic (EBS – optional) |
| Suspension | Spring |
| Towing eye | 90/D40 |
| Electrical network | 24V |
These products are included in the list of domestic machinery and equipment for the agro-industrial complex, the cost of which is partially compensated by budget funds under the “Made in Ukraine” program. You can apply for reimbursement to the Ministry of Economy of Ukraine and receive compensation of 25% of the cost of the products.
